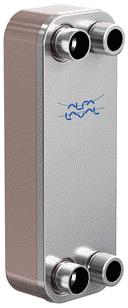

Alfa Laval CB30-10M Plate heat exchanger
Alfa Laval CB30-10M Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | 5 in stock |
| Typical use: | Classic plate brazed heat exchanger for a wider range of capacities. For smaller heating stations, DHW (hot water) heating, oil cooling. Capacity 10 to 25 kW. |
| Recommended max. flow 1): | 3 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 313 × 113 × 36 mm |
| Related products: | Insulation: Type A size CB30-20, Type B size CB30-25. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 58 bar |
| Weight: | 3.5 kg |
| Product sheet: | CB30.pdf
3287083368-CB30-10M.pdf |
| Item No. 2): | 3287083368 | CB30-10M S1S2 ISO G5/4" S3S4 ISO G1" |
|
| Connections: | 3287083368 | 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) |
|
| | |
| Notes: | Click to expand notes |
| 1) | The maximum recommended flow is calculated for water to limit pressure losses to 30 kPa. Also the flow velocity at the inlet to the exchanger is kept under 5.5 m/s to prevent erosion from water. The pressure losses increase proportionally to the square of the flow rate. |
| 2) | SC-Y intermediate pressure: for water/water use (approx. 20 bar)
SC-S standard pressure: for water/water use, some refrigerants (approx. 30 bar)
SC-M medium pressure: for refrigerants (approx. 48 bar)
SC-F intermediate pressure: for refrigerants (approx. 50 bar)
SC-H high pressure: for refrigerants (approx. 55 bar)
SC-D, SC-E higher pressure: for CO2 (approx. 55 bar)
SC-U ultra high pressure: for CO2 (approx. 100 bar)
SC-S: plates AISI 316, copper brazing
NSC-M: plates AISI 316, cover plates AISI 304, copper brazing
NC-S: plates AISI 304, copper brazing
SN-S: plates AISI 316, nickel brazing
MC-S: plates SMO 254, copper brazing
SPS-S: plates AISI 316, AISI 316 brazing (All Steel) |
Alfa Laval CB30-100M Plate heat exchanger
Alfa Laval CB30-100M Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | 5 in stock |
| Typical use: | Classic plate brazed heat exchanger for a wider range of capacities. For smaller heating stations, DHW (hot water) heating, oil cooling or as a condenser. Capacity 80 to 170 kW. |
| Recommended max. flow 1): | 11.5 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 313 × 113 × 244 mm |
| Related products: | Insulation: Type A size CB30-100, Type B size CB30-100. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 58 bar |
| Weight: | 13 kg |
| Product sheet: | CB30.pdf
3287083374-CB30-100M.pdf |
| Item No.: | 3287083374 | CB30-100M S1S2 ISO G5/4" S3S4 ISO G1" |
|
| Connections: | 3287083374 | 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) |
|
| | |
Alfa Laval CB30-18M Plate heat exchanger
Alfa Laval CB30-18M Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | 2 weeks |
| Typical use: | Classic plate brazed heat exchanger for a wider range of capacities. For smaller heating stations, DHW (hot water) heating, oil cooling. Capacity 20 to 40 kW. |
| Recommended max. flow 1): | 4 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 313 × 113 × 55 mm |
| Related products: | Insulation: Type A size CB30-20, Type B size CB30-25. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 58 bar |
| Weight: | 4 kg |
| Product sheet: | CB30.pdf
3287083369-CB30-18M.pdf |
| Item No.: | 3287083369 | CB30-18M S1S2 ISO G5/4" S3S4 ISO G1" |
|
| Connections: | 3287083369 | 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) |
|
| | |
Alfa Laval CB30-24M Plate heat exchanger
Alfa Laval CB30-24M Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | 2 weeks |
| Typical use: | Classic plate brazed heat exchanger for a wider range of capacities. For smaller heating stations, DHW (hot water) heating, oil cooling. Capacity 30 to 60 kW. |
| Recommended max. flow 1): | 5 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 313 × 113 × 69 mm |
| Related products: | Insulation: Type A size CB30-40, Type B size CB30-25. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 58 bar |
| Weight: | 5 kg |
| Product sheet: | CB30.pdf
3287083370-CB30-24M.pdf |
| Item No.: | 3287083370 | CB30-24M S1S2 ISO G5/4" S3S4 ISO G1" |
|
| Connections: | 3287083370 | 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) |
|
| | |
Alfa Laval CB30-34M Plate heat exchanger
Alfa Laval CB30-34M Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | 1 in stock |
| Typical use: | Classic plate brazed heat exchanger for a wider range of capacities. For smaller heating stations, DHW (hot water) heating, oil cooling or as a condenser. Capacity 45 to 90 kW. |
| Recommended max. flow 1): | 6 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 313 × 113 × 92 mm |
| Related products: | Insulation: Type A size CB30-40, Type B size CB30-50. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 58 bar |
| Weight: | 6 kg |
| Product sheet: | CB30.pdf
3287083371-CB30-34M.pdf |
| Item No.: | 3287083371 | CB30-34M S1S2 ISO G5/4" S3S4 ISO G1" |
|
| Connections: | 3287083371 | 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) |
|
| | |
Alfa Laval CB30-50M Plate heat exchanger
Alfa Laval CB30-50M Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | 5 in stock |
| Typical use: | Classic plate brazed heat exchanger for a wider range of capacities. For smaller heating stations, DHW (hot water) heating, oil cooling or as a condenser. Capacity 70 to 130 kW. |
| Recommended max. flow 1): | 7 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 313 × 113 × 129 mm |
| Related products: | Insulation: Type A size CB30-60, Type B size CB30-50. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 58 bar |
| Weight: | 8 kg |
| Product sheet: | CB30.pdf
3287083372-CB30-50M.pdf |
| Item No.: | 3287083372 | CB30-50M S1S2 ISO G5/4" S3S4 ISO G1" |
|
| Connections: | 3287083372 | 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) |
|
| | |
Alfa Laval CB30-70M Plate heat exchanger
Alfa Laval CB30-70M Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | >5 in stock |
| Typical use: | Classic plate brazed heat exchanger for a wider range of capacities. For smaller heating stations, DHW (hot water) heating, oil cooling or as a condenser. Capacity 75 to 150 kW. |
| Recommended max. flow 1): | 8.5 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 313 × 113 × 175 mm |
| Related products: | Insulation: Type A size CB30-80, Type B size CB30-100. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 58 bar |
| Weight: | 10 kg |
| Product sheet: | CB30.pdf
3287083373-CB30-70M.pdf |
| Item No.: | 3287083373 | CB30-70M S1S2 ISO G5/4" S3S4 ISO G1" |
|
| Connections: | 3287083373 | 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) |
|
| | |
