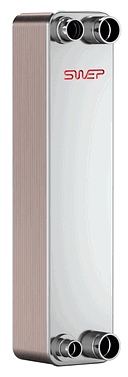

Plate evaporator SWEP V80Hx90
Plate evaporator SWEP V80Hx90
| Price without VAT: |
770.00 € |
| Price with VAT: | 931.70 € |
| Availability: | availability on request |
| Typical use: | Plate brazed evaporator for smaller capacities, suitable for example for refrigeration units, for heat pumps, etc. Also available as F80Hx90, F80ASHx90, P80Hx90, P80ASHx90, F85Hx90, F85ASHx90. |
| Recommended max. flow 1): | 10 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 526 × 119 × 211 mm |
| Related products: | Insulation: EPP 25Tx100, HVAC 25Tx100, Ref 28x100. Welding sleeve: 5/4" to DN25, 5/4" to DN32. |
| Testing pressure: | 50 bar |
| Weight: | 21 kg |
| Product sheet: | V80.pdf  |
| Item No. 2): | | 14238-090 | V80Hx90/1P-SC-S 22U(27)+35.1(27)+2x1 1/4"&28U(27) | | - | V80Hx90/1P-SC-M | | - | V80Hx90/1P-SC-F | | - | V80Hx90/1P-SC-H |
|
| Connections: | 14238-090 | solder 22U and ø35.1 + 2x 5/4" ISO G ext. thread (combo) |
|
| | |
| Notes: | Click to expand notes |
| 1) | The maximum recommended flow is calculated for water to limit pressure losses to 30 kPa. Also the flow velocity at the inlet to the exchanger is kept under 5.5 m/s to prevent erosion from water. The pressure losses increase proportionally to the square of the flow rate. |
| 2) | SC-Y intermediate pressure: for water/water use (approx. 20 bar)
SC-S standard pressure: for water/water use, some refrigerants (approx. 30 bar)
SC-M medium pressure: for refrigerants (approx. 48 bar)
SC-F intermediate pressure: for refrigerants (approx. 50 bar)
SC-H high pressure: for refrigerants (approx. 55 bar)
SC-D, SC-E higher pressure: for CO2 (approx. 55 bar)
SC-U ultra high pressure: for CO2 (approx. 100 bar)
SC-S: plates AISI 316, copper brazing
NSC-M: plates AISI 316, cover plates AISI 304, copper brazing
NC-S: plates AISI 304, copper brazing
SN-S: plates AISI 316, nickel brazing
MC-S: plates SMO 254, copper brazing
SPS-S: plates AISI 316, AISI 316 brazing (All Steel) |
Plate evaporator SWEP V80Hx30
Plate evaporator SWEP V80Hx30
| Price without VAT: |
375.00 € |
| Price with VAT: | 453.75 € |
| Availability: | in 3 days |
| Typical use: | Plate brazed evaporator for smaller capacities, suitable for example for refrigeration units, for heat pumps, etc. Also available as F80Hx30, F80ASHx30, P80Hx30, P80ASHx30, F85Hx30, F85ASHx30. |
| Recommended max. flow 1): | 4 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 526 × 119 × 77 mm |
| Related products: | Insulation: EPP 25Tx30, HVAC 25Tx40, Ref 28x40. Welding sleeve: 5/4" to DN25, 5/4" to DN32. |
| Testing pressure: | 50 bar |
| Weight: | 9.5 kg |
| Product sheet: | V80.pdf |
| Item No. 2): | | 14237-030 | V80Hx30/1P-SC-S 16(27)+35.1(27)+2x1 1/4"&28U(27) | | - | V80Hx30/1P-SC-M | | - | V80Hx30/1P-SC-F | | - | V80Hx30/1P-SC-H |
|
| Connections: | 14237-030 | solder ø16 and ø35.1 + 2x 5/4" ISO G ext. thread (combo) |
|
| | |
Plate evaporator SWEP V80Hx40
Plate evaporator SWEP V80Hx40
| Price without VAT: |
440.00 € |
| Price with VAT: | 532.40 € |
| Availability: | in 3 days |
| Typical use: | Plate brazed evaporator for smaller capacities, suitable for example for refrigeration units, for heat pumps, etc. Also available as F80Hx40, F80ASHx40, P80Hx40, P80ASHx40, F85Hx40, F85ASHx40. |
| Recommended max. flow 1): | 5 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 526 × 119 × 100 mm |
| Related products: | Insulation: EPP 25Tx40, HVAC 25Tx40, Ref 28x40. Welding sleeve: 5/4" to DN25, 5/4" to DN32. |
| Testing pressure: | 50 bar |
| Weight: | 11.5 kg |
| Product sheet: | V80.pdf |
| Item No. 2): | | 14237-040 | V80Hx40/1P-SC-S 16(27)+35.1(27)+2x1 1/4"&28U(27) | | - | V80Hx40/1P-SC-M | | - | V80Hx40/1P-SC-F | | - | V80Hx40/1P-SC-H |
|
| Connections: | 14237-040 | solder ø16 and ø35.1 + 2x 5/4" ISO G ext. thread (combo) |
|
| | |
Plate evaporator SWEP V80Hx50
Plate evaporator SWEP V80Hx50
| Price without VAT: |
510.00 € |
| Price with VAT: | 617.10 € |
| Availability: | 2 in stock |
| Typical use: | Plate brazed evaporator for smaller capacities, suitable for example for refrigeration units, for heat pumps, etc. Also available as F80Hx50, F80ASHx50, P80Hx50, P80ASHx50, F85Hx50, F85ASHx50. |
| Recommended max. flow 1): | 6 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 526 × 119 × 122 mm |
| Related products: | Insulation: EPP 25Tx60, HVAC 25Tx60, Ref 28x100. Welding sleeve: 5/4" to DN25, 5/4" to DN32. |
| Testing pressure: | 50 bar |
| Weight: | 12.5 kg |
| Product sheet: | V80.pdf |
| Item No. 2): | | 14237-050 | V80Hx50/1P-SC-S 16(27)+35.1(27)+2x1 1/4"&28U(27) | | - | V80Hx50/1P-SC-M | | - | V80Hx50/1P-SC-F | | - | V80Hx50/1P-SC-H |
|
| Connections: | 14237-050 | solder ø16 and ø35.1 + 2x 5/4" ISO G ext. thread (combo) |
|
| | |
Plate evaporator SWEP V80Hx60
Plate evaporator SWEP V80Hx60
| Price without VAT: |
580.00 € |
| Price with VAT: | 701.80 € |
| Availability: | 2 in stock |
| Typical use: | Plate brazed evaporator for smaller capacities, suitable for example for refrigeration units, for heat pumps, etc. Also available as F80Hx60, F80ASHx60, P80Hx60, P80ASHx60, F85Hx60, F85ASHx60. |
| Recommended max. flow 1): | 7 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 526 × 119 × 145 mm |
| Related products: | Insulation: EPP 25Tx60, HVAC 25Tx60, Ref 28x100. Welding sleeve: 5/4" to DN25, 5/4" to DN32. |
| Testing pressure: | 50 bar |
| Weight: | 15.5 kg |
| Product sheet: | V80.pdf |
| Item No. 2): | | 14238-060 | V80Hx60/1P-SC-S 22U(27)+35.1(27)+2x1 1/4"&28U(27) | | - | V80Hx60/1P-SC-M | | - | V80Hx60/1P-SC-F | | - | V80Hx60/1P-SC-H |
|
| Connections: | 14238-060 | solder 22U and ø35.1 + 2x 5/4" ISO G ext. thread (combo) |
|
| | |
Plate evaporator SWEP V80Hx70
Plate evaporator SWEP V80Hx70
| Price without VAT: |
640.00 € |
| Price with VAT: | 774.40 € |
| Availability: | 2 in stock |
| Typical use: | Plate brazed evaporator for smaller capacities, suitable for example for refrigeration units, for heat pumps, etc. Also available as F80Hx70, F80ASHx70, P80Hx70, P80ASHx70, F85Hx70, F85ASHx70. |
| Recommended max. flow 1): | 8 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 526 × 119 × 167 mm |
| Related products: | Insulation: EPP 25Tx80, HVAC 25Tx80, Ref 28x100. Welding sleeve: 5/4" to DN25, 5/4" to DN32. |
| Testing pressure: | 50 bar |
| Weight: | 17 kg |
| Product sheet: | V80.pdf |
| Item No. 2): | | 14238-070 | V80Hx70/1P-SC-S 22U(27)+35.1(27)+2x1 1/4"&28U(27) | | - | V80Hx70/1P-SC-M | | - | V80Hx70/1P-SC-F | | - | V80Hx70/1P-SC-H |
|
| Connections: | 14238-070 | solder 22U and ø35.1 + 2x 5/4" ISO G ext. thread (combo) |
|
| | |
Plate evaporator SWEP V80Hx80
Plate evaporator SWEP V80Hx80
| Price without VAT: |
710.00 € |
| Price with VAT: | 859.10 € |
| Availability: | availability on request |
| Typical use: | Plate brazed evaporator for smaller capacities, suitable for example for refrigeration units, for heat pumps, etc. Also available as F80Hx80, F80ASHx80, P80Hx80, P80ASHx80, F85Hx80, F85ASHx80. |
| Recommended max. flow 1): | 9 m3/h |
| Brazing material: | copper |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 526 × 119 × 189 mm |
| Related products: | Insulation: EPP 25Tx80, HVAC 25Tx80, Ref 28x100. Welding sleeve: 5/4" to DN25, 5/4" to DN32. |
| Testing pressure: | 50 bar |
| Weight: | 19 kg |
| Product sheet: | V80.pdf |
| Item No. 2): | | 14238-080 | V80Hx80/1P-SC-S 22U(27)+35.1(27)+2x1 1/4"&28U(27) | | - | V80Hx80/1P-SC-M | | - | V80Hx80/1P-SC-F | | - | V80Hx80/1P-SC-H |
|
| Connections: | 14238-080 | solder 22U and ø35.1 + 2x 5/4" ISO G ext. thread (combo) |
|
| | |
