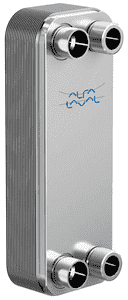

Alfa Laval AlfaNova27-70H Plate heat exchanger
Alfa Laval AlfaNova27-70H Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | 2 weeks |
| Typical use: | Plate heat exchanger with no copper brazing for a wider range of capacities. It is used in special cases, if there is a risk of corrosion of the solder (aggressive media, e.g. rust in water, distilled water) or when exposed to high temperatures. Capacity 80 to 160 kW. |
| Recommended max. flow 1): | 8 m3/h |
| Brazing material: | all-stainless steel |
| Model version: | all-stainless steel |
| Dimensions (H × W × D): | 310 × 111 × 180 mm |
| Related products: | Insulation: Type A size CB30-80, Type B size CB30-100. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 32 bar |
| Weight: | 11 kg |
| Product sheet: | AlfaNova27.pdf
3288000999-AlfaNova27-70H.pdf |
| Item No.: | 3288000999 | AlfaNova27-70H S1S2 ISO G5/4" S3S4 ISO G1" |
|
| Connections: | 3288000999 | 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) |
|
| | |
| Notes: | Click to expand notes |
| 1) | The maximum recommended flow is calculated for water to limit pressure losses to 30 kPa. Also the flow velocity at the inlet to the exchanger is kept under 5.5 m/s to prevent erosion from water. The pressure losses increase proportionally to the square of the flow rate. |
Alfa Laval AlfaNova27-10H Plate heat exchanger
Alfa Laval AlfaNova27-10H Plate heat exchanger
2 weeks Connections: 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) availability on request Connections: 4x 1" ISO G external thread (45 mm) |
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Typical use: | Plate heat exchanger with no copper brazing for a wider range of capacities. It is used in special cases, if there is a risk of corrosion of the solder (aggressive media, e.g. rust in water, distilled water) or when exposed to high temperatures. Capacity 10 to 20 kW. |
| Recommended max. flow 1): | 1 m3/h |
| Brazing material: | all-stainless steel |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 310 × 111 × 35 mm |
| Related products: | Insulation: Type A size CB30-20, Type B size CB30-25. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 32 bar |
| Weight: | 3.5 kg |
| Product sheet: | AlfaNova27.pdf
3288001188-AlfaNova27-10H.pdf
3287118840-AlfaNova27-10H.pdf |
| Item No.: | 3288001188 | AlfaNova27-10H S1S2 ISO G5/4" S3S4 ISO G1" | 3287118840 | AlfaNova27-10H S1S2S3S4 ISO G1" |
|
| | |
Alfa Laval AlfaNova27-100H Plate heat exchanger
Alfa Laval AlfaNova27-100H Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | 2 weeks |
| Typical use: | Plate heat exchanger with no copper brazing for a wider range of capacities. It is used in special cases, if there is a risk of corrosion of the solder (aggressive media, e.g. rust in water, distilled water) or when exposed to high temperatures. Capacity 100 to 200 kW. |
| Recommended max. flow 1): | 11 m3/h |
| Brazing material: | all-stainless steel |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 310 × 111 × 253 mm |
| Related products: | Insulation: Type A size CB30-120, Type B size CB30-100. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 32 bar |
| Weight: | 15 kg |
| Product sheet: | AlfaNova27.pdf
3287050287-AlfaNova27-100H.pdf |
| Item No.: | 3287050287 | AlfaNova27-100H S1S2 ISO G5/4" S3S4 ISO G1" |
|
| Connections: | 3287050287 | 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) |
|
| | |
Alfa Laval AlfaNova27-18H Plate heat exchanger
Alfa Laval AlfaNova27-18H Plate heat exchanger
2 weeks Connections: 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) 2 weeks Connections: 4x 1" ISO G external thread (45 mm) |
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Typical use: | Plate heat exchanger with no copper brazing for a wider range of capacities. It is used in special cases, if there is a risk of corrosion of the solder (aggressive media, e.g. rust in water, distilled water) or when exposed to high temperatures. Capacity 20 to 40 kW. |
| Recommended max. flow 1): | 2 m3/h |
| Brazing material: | all-stainless steel |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 310 × 111 × 55 mm |
| Related products: | Insulation: Type A size CB30-20, Type B size CB30-25. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 32 bar |
| Weight: | 4.5 kg |
| Product sheet: | AlfaNova27.pdf
3288000763-AlfaNova27-18H.pdf
3287051035-AlfaNova27-18H.pdf |
| Item No.: | 3288000763 | AlfaNova27-18H S1S2 ISO G5/4" S3S4 ISO G1" | 3287051035 | AlfaNova27-18H S1S2S3S4 ISO G1" |
|
| | |
Alfa Laval AlfaNova27-20H Plate heat exchanger
Alfa Laval AlfaNova27-20H Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | 2 weeks |
| Typical use: | Plate heat exchanger with no copper brazing suitable as evaporator about 5 kW. It is used in special cases, if there is a risk of corrosion of the solder (aggressive media, e.g. rust in water, distilled water). |
| Recommended max. flow 1): | 2.5 m3/h |
| Brazing material: | all-stainless steel |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 310 × 111 × 60 mm |
| Related products: | Insulation: Type A size CB30-40, Type B size CB30-25. Welding sleeve: 1" to DN20. |
| Testing pressure: | 32 bar |
| Weight: | 5 kg |
| Product sheet: | AlfaNova27.pdf
3287000926-AlfaNova27-20H.pdf |
| Item No.: | 3287000926 | AlfaNova27-20H S3S4 Solder28 S1S2 ISO G1" |
|
| Connections: | 3287000926 | 2x solder ø28 + 2x 1" ISO G external thread (24 mm) |
|
| | |
Alfa Laval AlfaNova27-24H Plate heat exchanger
Alfa Laval AlfaNova27-24H Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | 2 weeks |
| Typical use: | Plate heat exchanger with no copper brazing for a wider range of capacities. It is used in special cases, if there is a risk of corrosion of the solder (aggressive media, e.g. rust in water, distilled water) or when exposed to high temperatures. Capacity 30 to 60 kW. |
| Recommended max. flow 1): | 3 m3/h |
| Brazing material: | all-stainless steel |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 310 × 111 × 69 mm |
| Related products: | Insulation: Type A size CB30-40, Type B size CB30-25. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 32 bar |
| Weight: | 5 kg |
| Product sheet: | AlfaNova27.pdf
3288000901-AlfaNova27-24H.pdf |
| Item No.: | 3288000901 | AlfaNova27-24H S1S2 ISO G5/4" S3S4 ISO G1" |
|
| Connections: | 3288000901 | 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) |
|
| | |
Alfa Laval AlfaNova27-30H Plate heat exchanger
Alfa Laval AlfaNova27-30H Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | 2 weeks |
| Typical use: | Plate heat exchanger with no copper brazing suitable as evaporator about 7 kW. It is used in special cases, if there is a risk of corrosion of the solder (aggressive media, e.g. rust in water, distilled water). |
| Recommended max. flow 1): | 3.5 m3/h |
| Brazing material: | all-stainless steel |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 310 × 111 × 84 mm |
| Related products: | Insulation: Type A size CB30-40, Type B size CB30-25. Welding sleeve: 1" to DN20. |
| Testing pressure: | 32 bar |
| Weight: | 5.5 kg |
| Product sheet: | AlfaNova27.pdf
3287000928-AlfaNova27-30H.pdf |
| Item No.: | 3287000928 | AlfaNova27-30H S3S4 Solder28 S1S2 ISO G1" |
|
| Connections: | 3287000928 | 2x solder ø28 + 2x 1" ISO G external thread (24 mm) |
|
| | |
Alfa Laval AlfaNova27-34H Plate heat exchanger
Alfa Laval AlfaNova27-34H Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | 2 weeks |
| Typical use: | Plate heat exchanger with no copper brazing for a wider range of capacities. It is used in special cases, if there is a risk of corrosion of the solder (aggressive media, e.g. rust in water, distilled water) or when exposed to high temperatures. Capacity 40 to 80 kW. |
| Recommended max. flow 1): | 4 m3/h |
| Brazing material: | all-stainless steel |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 310 × 111 × 93 mm |
| Related products: | Insulation: Type A size CB30-40, Type B size CB30-50. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 32 bar |
| Weight: | 6.5 kg |
| Product sheet: | AlfaNova27.pdf
3288000764-AlfaNova27-34H.pdf |
| Item No.: | 3288000764 | AlfaNova27-34H S1S2 ISO G5/4" S3S4 ISO G1" |
|
| Connections: | 3288000764 | 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) |
|
| | |
Alfa Laval AlfaNova27-40H Plate heat exchanger
Alfa Laval AlfaNova27-40H Plate heat exchanger
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Availability: | availability on request |
| Typical use: | Plate heat exchanger with no copper brazing. It is used in special cases, if there is a risk of corrosion of the solder (aggressive media, e.g. rust in water, distilled water). |
| Recommended max. flow 1): | 4.5 m3/h |
| Brazing material: | all-stainless steel |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 310 × 111 × 108 mm |
| Related products: | Insulation: Type A size CB30-60, Type B size CB30-50. Welding sleeve: 1" to DN20. |
| Testing pressure: | 32 bar |
| Weight: | 7 kg |
| Product sheet: | AlfaNova27.pdf
3287000930-AlfaNova27-40H.pdf |
| Item No.: | 3287000930 | AlfaNova27-40H S3S4 Solder28 S1S2 ISO G1" |
|
| Connections: | 3287000930 | 2x solder ø28 + 2x 1" ISO G external thread (24 mm) |
|
| | |
Alfa Laval AlfaNova27-50H Plate heat exchanger
Alfa Laval AlfaNova27-50H Plate heat exchanger
2 in stock Connections: 2x 1" ISO G + 2x 5/4" ISO G external threads (45 mm) in 3 days Connections: 2x solder ø28 + 2x 1" ISO G external thread (24 mm) |
| Delivery costs: | EU 0 € (we deliver only to the EU) |
| Typical use: | Plate heat exchanger with no copper brazing for a wider range of capacities. It is used in special cases, if there is a risk of corrosion of the solder (aggressive media, e.g. rust in water, distilled water) or when exposed to high temperatures. Capacity 60 to 120 kW. |
| Recommended max. flow 1): | 6 m3/h |
| Brazing material: | all-stainless steel |
| Model version: | plate exchanger from stainless steel (AISI 316) |
| Dimensions (H × W × D): | 310 × 111 × 132 mm |
| Related products: | Insulation: Type A size CB30-60, Type B size CB30-50. Welding sleeve: 1" to DN20, 5/4" to DN25. |
| Testing pressure: | 32 bar |
| Weight: | 8.5 kg |
| Product sheet: | AlfaNova27.pdf
3288000970-AlfaNova27-50H.pdf
3287000931-AlfaNova27-50H.pdf |
| Item No.: | 3288000970 | AlfaNova27-50H S1S2 ISO G5/4" S3S4 ISO G1" | 3287000931 | AlfaNova27-50H S3S4 Solder28 S1S2 ISO G1" |
|
| | |
