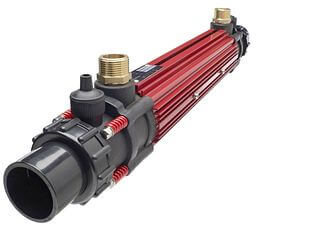

Pool tubular exchanger Elecro G2 Titanium 49 kW
Pool tubular exchanger Elecro G2 Titanium 49 kW
| Price without VAT: | 510.00 € |
| Price with VAT: | 617.10 € |
| Availability: | not available |
| Typical use: | A good choice where there is a high temperature heat source. The exchanger primary chamber is made of stainless steel AISI 316. Inside is densely packed tube bundle made of titanium steel (for salt water). The hot heating water inside the exchangers is routed in an opposing direction to the secondary (pool) water. The heat exchanger can be floor or wall mounted (bracket supplied). A 1" non-return valve for heating water is included. |
| Recommended max. flow: | 20 m3/h |
| Model version: | AISI 316 steel on the heating water side; titanium steel on the pool water side |
| Dimensions (H × W × D): | 710 × 130 × 110 mm |
| Testing pressure: | 4 bar |
| Weight: | 4.5 kg |
| Product sheet: | en_elecro_g2_heat_exchanger.pdf  |
| Connections: | 2x 1" ISO G external thread; 2x PVC connection 50 mm |
